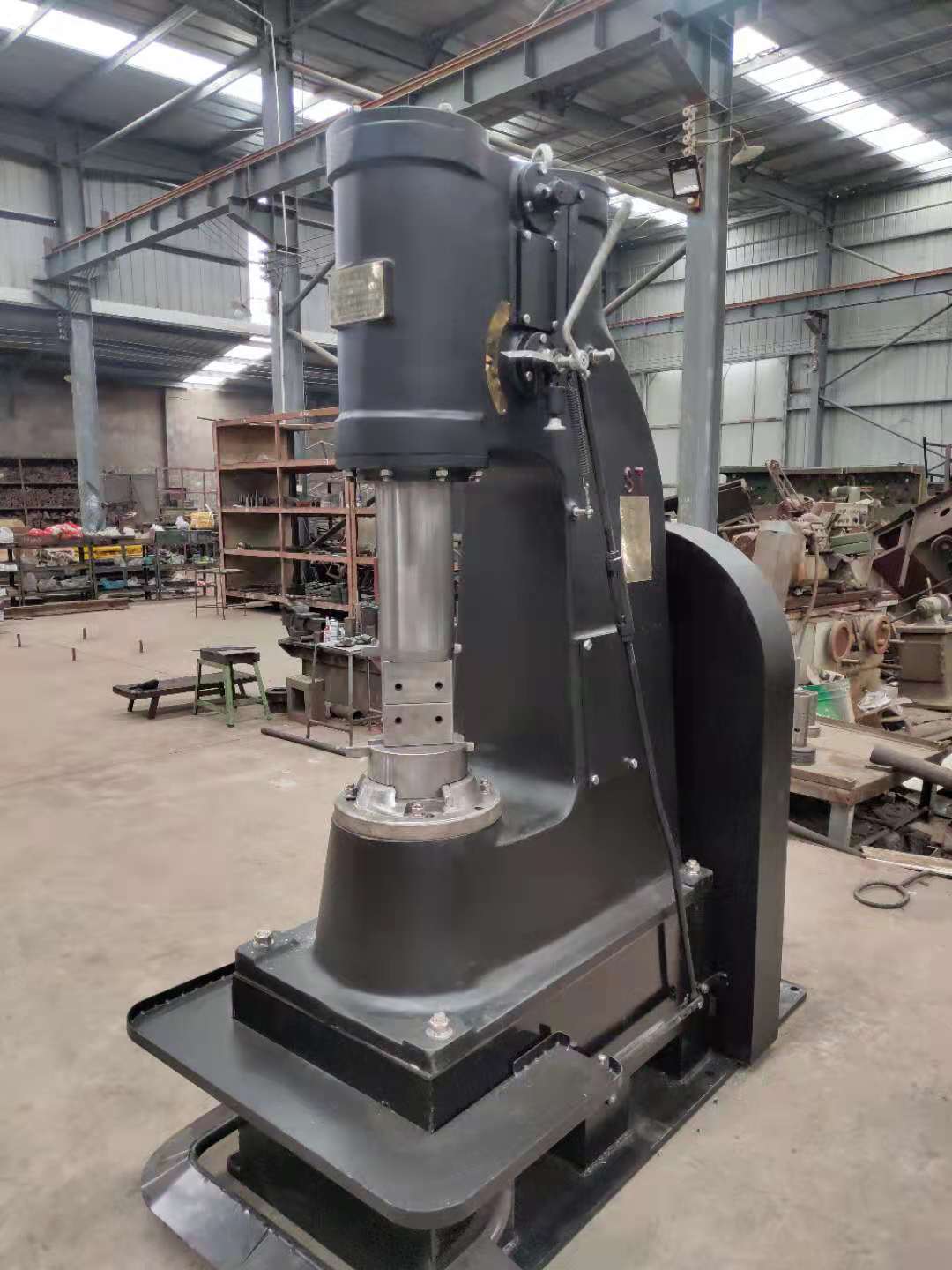

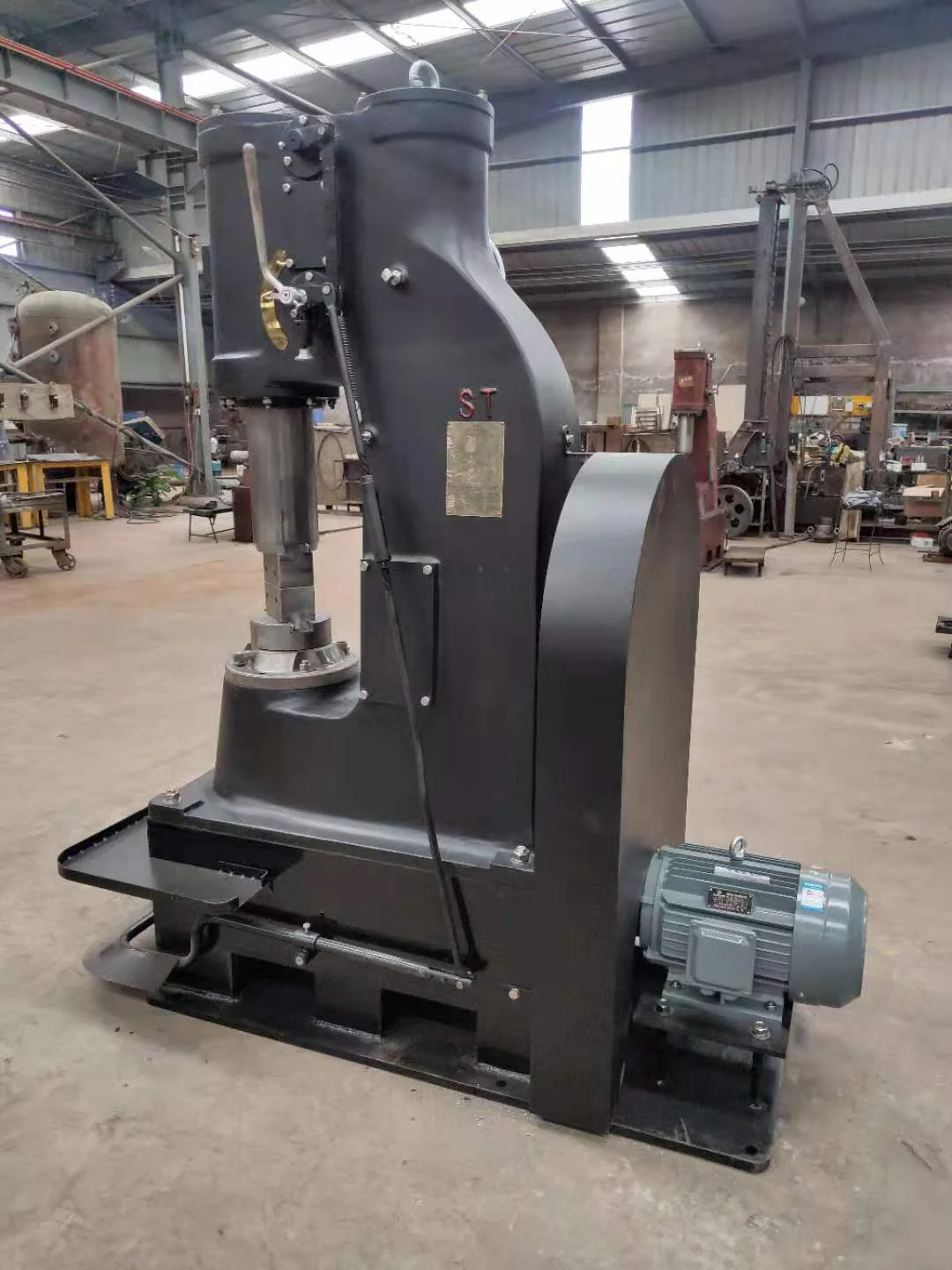

Anyang ST 40 kg Pneumatic Power Hammer

Description

The Anyang ST 40 kg Pneumatic Power Hammer is built for blacksmiths and metalworkers who need dependable forging power, precision control, and industrial-grade durability in a compact footprint. Designed to handle demanding forging applications with ease, this self-contained pneumatic hammer helps you work faster, forge more consistently, and take on larger projects with confidence.

Why You’ll Love The Anyang ST 40 kg Pneumatic Power Hammer

1. 40 kg ram delivers serious forging force
   Capable of shaping steel up to 52×52 mm square or Φ68 mm round, the ST 40 provides the striking power needed for demanding forging work while maintaining smooth, controlled operation.
2. Precision pneumatic control improves consistency
   The dual-cylinder pneumatic system delivers accurate, repeatable strikes, helping you achieve cleaner finishes and better control across every stage of the forging process.
3. Heavy-duty welded steel frame built for long-term reliability
   Constructed for intensive workshop environments, the rugged steel frame provides excellent stability and durability under continuous use.
4. Self-contained design simplifies workshop setup
   With no external compressor required, the ST 40 helps reduce workshop clutter, streamline installation, and minimise ongoing maintenance demands.

Your life, with the Anyang ST 40 kg Pneumatic Power Hammer

Imagine stepping into your workshop knowing your hammer is ready to handle whatever project comes next. From heavy drawing work to detailed finishing, the Anyang ST 40 gives you the confidence to forge efficiently without sacrificing control.

Whether you’re creating tools, blades, architectural ironwork, or production pieces, this hammer helps you move material faster while reducing physical fatigue during long forging sessions. The responsive pneumatic system keeps you connected to your work, allowing for smooth transitions between delicate shaping and full-force forging.

As your workshop grows, the ST 40 grows with you. Reliable performance. Greater efficiency. Industrial-grade power that supports your craft day after day.

The Anyang ST 40 kg Pneumatic Power Hammer in a nutshell:

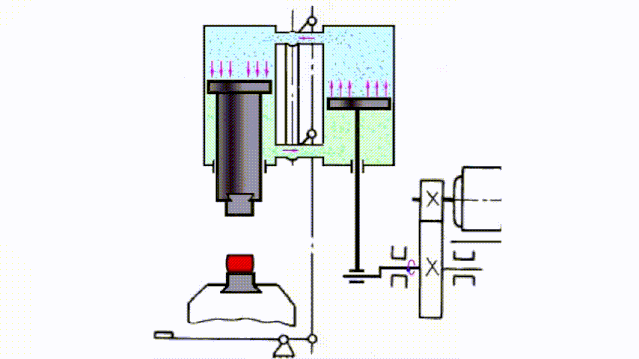

1. Dual Cylinder Pneumatic System – Compression and working cylinders deliver smooth, controlled hammer movement for consistent forging performance.
2. Quick Access Maintenance Design – Removable access covers simplify greasing and servicing, helping reduce downtime and keep your hammer operating efficiently.
3. Interchangeable Die Options – Compatible with drawing, fullering, crown, and combination dies to support a wide range of forging applications.
4. Three-Phase Ready with VFD Compatibility – Supplied ready for three-phase service, with optional VFD compatibility available for single-phase workshop setups.

Anyang ST 40 kg Pneumatic Power Hammer specifications

Model

ST-40

Rated Weight of Tup

40 kg (88 lbs.)

Blow Energy

0.53 KJ

Number of Blows Per Minute

245

Working Height

250 mm (9.84″)

Distance From Hammer to Rod

270 mm (10.62″)

Maximum Square Worked (M.S)

52 mm × 52 mm (2.05″)

Maximum Diameter Worked (M.S)

Φ68 mm (2.68″)

Motor Model

Y132M1-6

Motor Power

4 kW / 5 hp

Total Weight

1,390 kg (3,064.4 lbs.)

Overall Length

1,650 mm (65″)

Overall Width

800 mm (31.5″)

Overall Height

1,920 mm (75.6″)
